Our 45 MHz Series Monolithic Crystal Filters

Network Sciences 45 MHz monolithic crystal filter (MCF) series offers our customers reduced size, low cost, superior performance & excellent quality for wireless & general communication applications.

Model

#

Poles

Fo

MHz

Passband Attenuation

Stopband

Attenuation

Ultimate

Attenuation

Ripple

dB

Loss

dB

Termination

(W)//(pF)

Cc

pF

Case

dB

kHz

dB

kHz

dB

kHz

45R08A1

2

45.000

3

Fo ±3.75

10

Fo ±12.5

60

Fo ± 910

1

2

200//4

n/a

UM-1

45R08B1

4

45.000

3

Fo ±3.75

30

Fo ±12.5

90

Fo ± 910

1

4

350//6

21

UM-1 X2

45R10A1

2

45.000

3

Fo ±5

15

Fo ±18

60

Fo ± 910

1

2

400//5

n/a

UM-1

45R10B1

4

45.000

3

Fo ±5

35

Fo ±18

90

Fo ± 910

1

3

400//5

15

UM-1 X2

45R12A1

2

45.000

3

Fo ±6

15

Fo ±20

60

Fo ± 910

1

2

500//5

n/a

UM-1

45R12B1

4

45.000

3

Fo ±6

35

Fo ±20

90

Fo ± 910

1

3

500//4

12

UM-1 X2

45R15A1

2

45.000

3

Fo ±7.5

15

Fo ±25

60

Fo ± 910

1

3

650//3

n/a

UM-1

45R15B1

4

45.000

3

Fo ±7.5

35

Fo ±30

90

Fo ± 910

1

3

650//3

9

UM-1 X2

45R20A1

2

45.000

3

Fo ±10

15

Fo ±40

60

Fo ± 910

1

2

850//2

n/a

UM-1

45R20B1

4

45.000

3

Fo ±10

35

Fo ±40

90

Fo ± 910

1

3

850//2

9

UM-1 X2

45R30A1

2

45.000

3

Fo ±15

10

Fo ±50

60

Fo ± 910

1

2

1200//1

n/a

UM-1

45R30B1

4

45.000

3

Fo ±15

35

Fo ±50

90

Fo ± 910

1

3

1200//1

4

UM-1 X2

45R36A1

2

45.000

3

Fo ±18

10

Fo ±60

60

Fo ± 910

1

2

1500//1

n/a

UM-1

45R36B1

4

45.000

3

Fo ±18

35

Fo ±60

90

Fo ± 910

1

3

1500//1

3

UM-1 X2

Fundamental 45 MHz Series

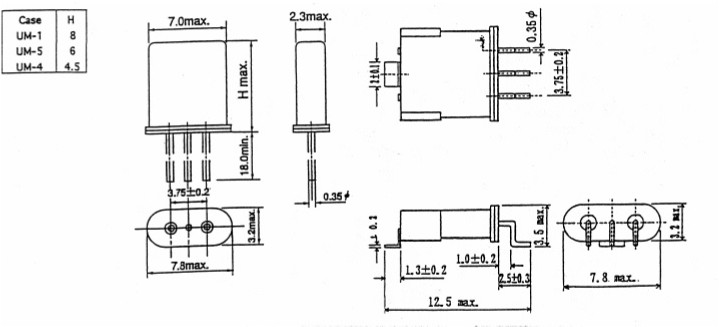

CASE OUTLINE DRAWING (mm)
