Our 10.7 MHz Series Monolithic Crystal Filters


TYPE


POLE

#


PASS BAND

WIDTH


STOP BAND WIDTH


RIPPLE

dB

INSERTION

LOSS

dB

GUARANTEED

ATTENUATION

TERMINATING

IMPEDANCE

R1 //C1(W//pF)

OPERATING

TEMP.RANGE

0c

CASE


dB

kHz

dB

kHz

dB

kHz

dB

to ±kHz

10M08AZ

2


3

±3.75

20

±18

-

0

0.5

1.5

+300~ +1000

-200~ -1000

1.8K//5.0

-20~ +70

HC-49/U

10M08BZ

4

3

±3.75

40

±14

-

-

1.0

2.5

+300~ +1000

-200~ -1000

1.8K//4.5

-20~ +70

HC-49U/x2

10M08CZ

6

3

±3.75

50

±8.75

65

±12.5

2.0

3.0

±2.5~ ±300

3.3K//2.5

-20~ +70

M-1

10M08DZ

8

3

±3.75

65

±8.75

90

±12.5

2.0

4.0

±12.5~ ±300

3.3K//2.5

-20~ +70

M-2

12.5 kHz CHANNEL SPACING


TYPE


POLE

#


PASS BAND

WIDTH


STOP BAND WIDTH


RIPPLE

dB

INSERTION

LOSS

dB

GUARANTEED

ATTENUATION

TERMINATING

IMPEDANCE

R1 //C1(W//pF)

OPERATING

TEMP.RANGE

0c

CASE

dB

kHz

dB

kHz

dB

kHz

dB

to ±kHz

10M15AZ

2

3

±7.5

18

±25

-

-

0.5

 1.5

35

+300~+1000

-200~ -1000

3.0K//2.0

-20~ +70

HC-49/U

10M15BZ

4

3

±7.5

40

±25

-

-

1.0

2.5

65

+300~+1000

-200~ -1000

3.0K//1.5

-20~ +70

HC-49U/x2

10M15CZ

6

3

±7.5

60

±22.5

-

-

2.0

3.0

60

±22~±300

3.0K//1.5

-20~ +70

M-1

10M15DZ

8

3

±7.5

60

±15.5

80

±20

2.0

4.0

80

±20~±300

3.0K//1.5

-20~ +70

M-2

10M15EZ

10

6

±7.5

75

±15.0

90

±17.5

2.0

5.0

90

±17.5~±300

3.0K//1.0

-20~ +70

M-3

25 kHz CHANNEL SPACING



TYPE


POLE

#


PASS BAND

WIDTH


STOP BAND WIDTH


RIPPLE dB

INSERTION

LOSS

dB

GUARANTEED

ATTENUATION

TERMINATING

IMPEDANCE

R1 //C1(W//pF)

OPERATING

TEMP.RANGE

0c

CASE

dB

kHz

dB

kHz

dB

kHz

dB

to ±kHz

10M30AZ

2

3

±15

15

±50

-

-

0.5

1.5

30

±300~±1000

5.0K//0

-20~ +70

HC-49/U

10M30BZ

4

3

±15

30

±40

-

-

1.0

2.5

65

±300~±1000

5.5K//-1

-20~ +70

HC-49U/x2

10M30CZ

6

6

±15

60

±45

-

-

2.0

3.0

60

±45~±300

5.5K//-1

-20~ +70

M-1

10M30DZ

8

6

±15

60

±30

80

±40

2.0

3.5

80

±40~±300

5.5K//-1

-20~ +70

M-2

50 kHz CHANNEL SPACING



TYPE


POLE

#


PASS BAND

WIDTH


STOP BAND WIDTH


RIPPLE

dB

INSERTION

LOSS

dB

GUARANTEED

ATTENUATION

TERMINATING

IMPEDANCE

R1 //C1(W//pF)

OPERATING

TEMP.RANGE

0c

CASE

dB

kHz

dB

kHz

dB

kHz

dB

to ±kHz

10M02CS

6

6

±1.1

20

±1.7

60

±3.0

2.0

3.0

70

±4.0~±300

600//15

-20~ +70

M-5

10M02DS

8

6

±1.1

20

±1.5

60

±2.5

2.0

4.0

80

±3.0~±300

600//15

-20~ +70

M-6

10M04DS

8

6

±1.1

15

±2.45

60

±4.0

2.0

4.0

80

±6.0~±300

1.0K//8

-20~ +70

M-6

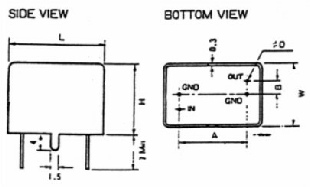

10.695 MHz SSB


case

L

W

H

A

B

ØD

case

L

W

H

A

B

ØD

M-1

M-2

M-3

M-4

M-5

M-6

15.0

18.5

23.0

28.0

15.0

18.5

12.0

12.0

12.0

12.0

12.0

12.0

15.0

15.0

15.0

15.0

20.0

20.0

9.0

13.4

17.8

22.2

9.0

13.4

2.5

2.5

2.5

2.5

2.5

2.5

0.43

0.43

0.43

0.43

0.43

0.43

S-1

S-2

S-3

8.5

11.0

13.4

8.5

8.5

8.5

11.5

11.5

11.5

5.0

7.4

9.8

2.0

2.0

2.0

0.3

0.3

0.3

R-1

R-2

R-3

10.0

13.4

16.0

8.5

8.5

8.5

11.5

11.5

11.5

6.0

9.0

12.0

2.0

2.0

2.0

0.3

0.3

0.3

DIMENSIONS (mm)
